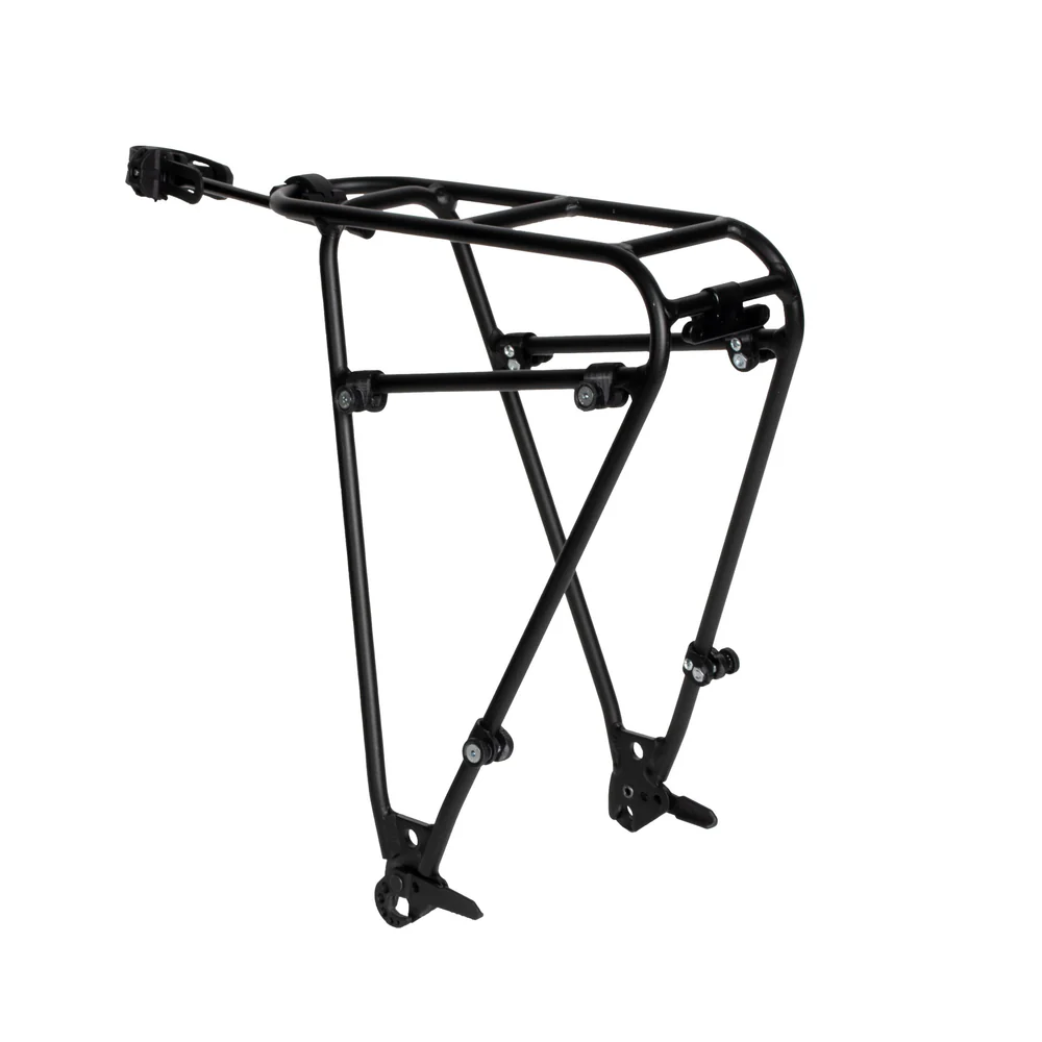

Ortlieb Quick-Rack
Transform your bike into a shopping and commuting mode of transport in seconds with the Ortlieb Quick-Rack.
It takes just 15-seconds to mount the practical Quick-Rack onto your bike and 5 seconds to remove again - really quick!
The struts with a diameter of 10 mm support a payload of up to 20 kilograms.
The Quick-Rack is suitable for use with all of Ortlieb's fixation systems so that you can combine it with any ORTLIEB bag. Thanks to the two hanging levels and a platform, you can fasten panniers and a basket at the same time. The optional mudguards make sure that you keep dry and clean in bad weather too.
ORTLIEB Quick-Rack Specifications:
Height: 39 cm
Width: 18.5 cm
Depth: 40 cm
Load: 20 kg
Weight: 580 g
What is the maximum load that can be used on the Quick-Rack?
The Quick-Rack is not designed to transport more than 20kg.
What products are compatible with the Quick-Rack?
All Ortlieb carrying systems are compatible with the Quick-Rack.
How do I fit the rack?
The Quick-Rack comes with clear instructions. The images on our site show how the system sits on your bike. It simply clips on to your bike frame - taking just 15 seconds!
Quick-Rack Safety Information
- Risk of injury due to incorrectly attached products! Before riding, check that the product is securely fastened.
- Risk of injury due to damage to the luggage carrier during passenger transport and trailer attachment! Do not transport people and do not attach a trailer to the luggage carrier.
- Risk of injury due to material breakage if overloaded! Do not exceed the maximum payload of 20 kg in total and a maximum of 10 kg per side. If necessary, weigh your load to ensure that you do not exceed the maximum payload.
- Risk of injury due to insufficient clearance between luggage rack (and/or mudguard) and tire. The distance between the luggage carrier (and/or mudguard) and the tire must be at least 20 mm. Check the distance after mounting.
